| Peso | 19 kg | Torque | at0.4MPa |
| Dimensiones | 600 × 534 × 157mm | Frecuencia de impacto | > 28-35Hz |
| Carrera de Pistón | 54mm | Profundidad de perforación | > 6m max. |
| Ø de Cilindro | 65mm | Ø interior manguera de aire | 19mm |
| Presión de aire | 0.4-0.5Mpa | Ø interior manguera de agua | 13mm |
| Presión del agua | 0.2-0.3Mpa | Tamańo de la broca | 32-42mm |
| Consumo de aire | 37-43L/S | Tamańo del mango | H22X108mm |
| Energía de impacto | 40J | Modelo pie de avance | FT100 |
| Velocidad perforación | 180mm |

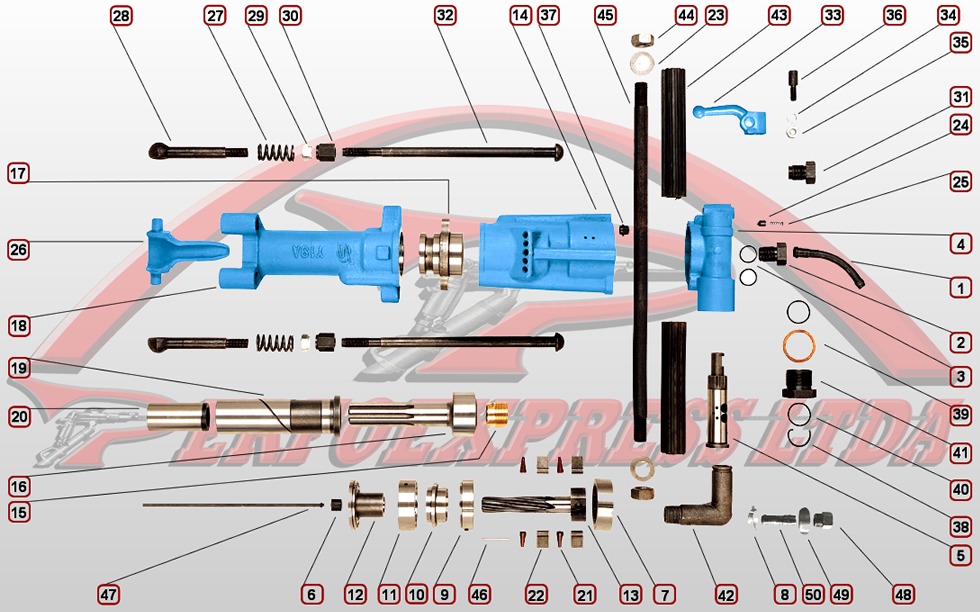

| N° | Código | Descripción |
|---|---|---|
| 1 | Y19A-3.09 | Water connect tube |
| 2 | Y19A-3.08 | Water pipe nut |
| 3 | B1235-79 | 0- ring |
| 4 | Y19A-04 | Handle |
| 5 | Y19A-05 | operating valve |
| 6 | YT23-3.04 | water tube sleeve |
| 7 | Y19A-06A | inner rathet |
| 8 | ZBJ15001-87 | Hoop |
| 9 | Y19A-07A | valve cover |
| 10 | Y19A-08 | Valve |
| 11 | Y19A-09 | Valve chest |
| 12 | Y19A-10A | Valve sleeve |
| 13 | Y19A-11A | Rifle Bar |
| 14 | Y19A-03 | Cylincler |
| 15 | Y19A-12 | Rifle nut |
| 16 | Y19A-01 | Piston |
| 17 | Y19A-13 | Guide Sleeve |
| 18 | Y19A-02 | Front head |
| 19 | YT23-2.02A | Rotation sleeve |
| 20 | YT25-2.03 | Shanck Sleeve |
| 21 | YT25-1.15 | Crowned spring |
| 22 | YT25-1.14 | Ratchet Pawl |
| 23 | GB848-85 | Pad |
| 24 | YT25-3.21 | Setting pin |
| 25 | YT25-3.20 | Spring |
| 26 | YT23-2.07 | Yoke |
| 27 | YT23-2.05 | Yoke sgring |
| 28 | YT23-2.03A | Yoke bolt |
| 29 | GB889-86 | I Hex. Locking nut |
| 30 | GB56-88 | Hex. Thick nut |
| 31 | Y19A-3.08F | Plug nut |
| 32 | Y19A-14 | Side bolt |
| 33 | YSP45-316 | Control handle |
| 34 | GB93-87 | Pad |
| 35 | GB6172-86 | Hex. Thin nut |
| 36 | YT25-3-17A | Fixing pin |
| 37 | YT30-3.07 | Big seal sleeve |
| 38 | YT25-3.33 | Retaining ring |
| 39 | YT25-3.12 | pad |
| 40 | 30×3-25 | o-seal ring |
| 41 | YT23-3.07 | Air pipe nut |
| 42 | YT23-3.09 | Air connection tube |
| 43 | Y19A-3.05 | Rubber handle |
| 44 | GB889-86 | I Hex. locking nut |
| 45 | Y19A-3.04 | Handle bolt |
| 46 | Y19-15 | Setting pin |
| 47 | YT23-3.03 | Water Tube |
| 48 | 19-16 | Pipe connector |
| 49 | 19-ene | Wing nut |
| 50 | 19-abr | Conical pipe connect |
Perfoexpress Ltda. distribuye productos para la Minería, Construcción y Transporte. Entre ellos, Perforadoras Neumáticas de procedencia China y toda la gama de repuestos, además de un amplio stock de insumos mineros.
