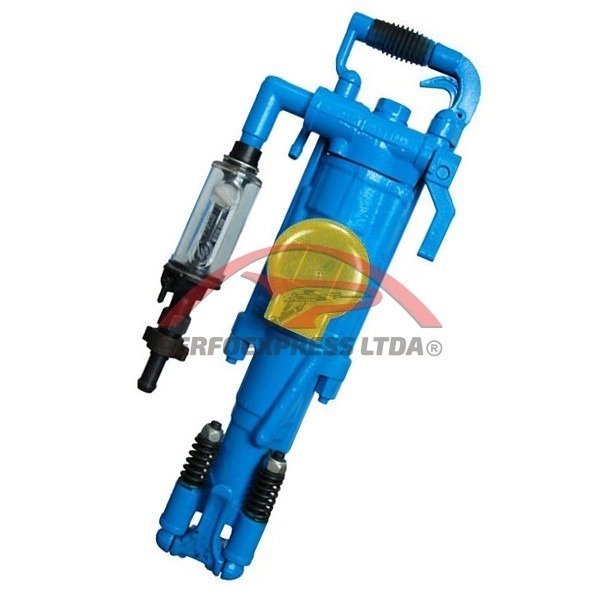

| Peso | 26 kg | Frecuencia de Impacto | 37 Hz |
| Largo x Ancho x Alto | 659x247x195 | Energía Impacto | 48 ~ 75.5 J |
| Consumo de aire | 81 L/s | Presión de Trabajo | 0.4 ~ 0.63 MPa |
| Ø Manguera de aire | 25 mm | Presión hidraulica | 0.3 MPa |
| Ø Manguera de agua | 13 mm | Torque | 15 ~ 23 Nm |
| Ø de cilindro | 80 mm | Ø apropiado de orificio | 34 ~ 45 mm |
| Carrera de Pistón | 60 mm | Profundidad de Perforación | 5 Mts |
| Velocidad Perforación | 300 ~ 470 mm/min | Vástago | 22×108 mm |
| EMBOLO | LUBRICADOR | ||
| Modelo de pie avance | FT160BC | Modelo Lubricador | FY200 Acrilico |
| Peso de embolo | 16.9 Kg | Peso | 1.2 Kg |
| Largo máximo | 3165 mm | Capacidad de aceitero | 200ml |
| Largo mínimo | 1365 mm | ||

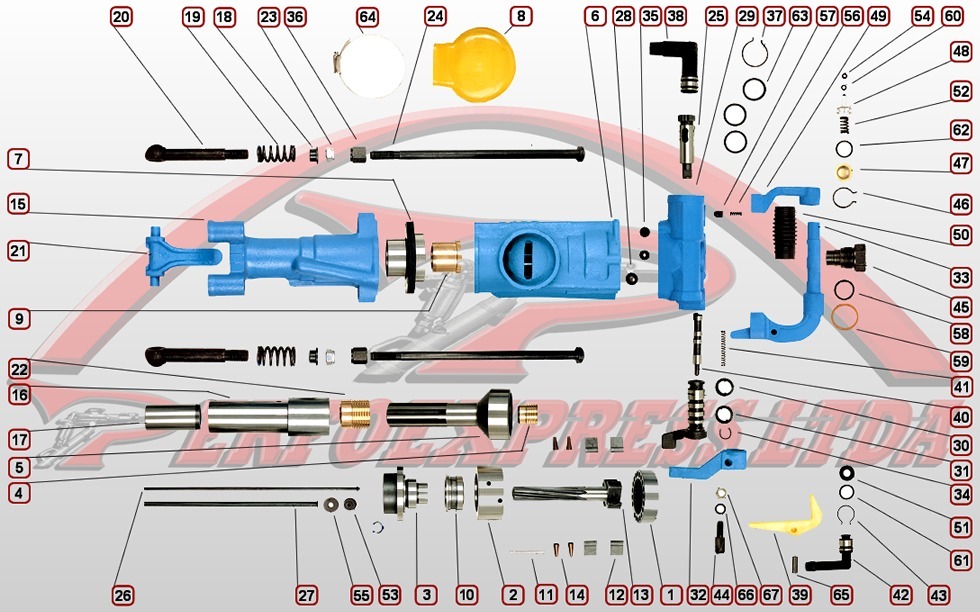

| N° | Código | Descripción |
|---|---|---|
| 1 | YT28-1.02 | Corona |
| 2 | YT28-1.03 | Cubierta de válvula |
| 3 | YT28-1.05 | Guía de válvula |
| 4 | YT28-1.08 | Tuerca rifle |
| 5 | YT28-1.10 | Pistón |
| 6 | YT28-1.11a | Cilindro |
| 7 | YT28-1.12a | Guía intermedia |
| 8 | YT28-1.13 | Silenciador |
| 9 | YT28-1.14 | Buje bronce |
| 10 | YT24-1.04 | Válvula de aire |
| 11 | YT24-1.06 | Pasador |
| 12 | YT24-1.07 | Uñeta trinquete |
| 13 | YT24-1.09 | Eje rifle |
| 14 | YT24-1.14 | Resorte trinquete |
| 15 | YT28-2.01b | Trompa |
| 16 | YT28-2.02a | Chuck |
| 17 | YT24-2.03 | Portabroca |
| 18 | YT28-2.12 | Buje de freno |
| 19 | YT28-2.05 | Resorte freno |
| 20 | YT24-2.06 | Perno de freno |
| 21 | YT24-2.07a | Freno |
| 22 | YT28-2.09 | Tuerca de rotacion |
| 23 | GB889-86 | Tuerca de freno |
| 24 | YT28-3.02 | Perno lateral |
| 25 | YT28-3.03a | Válvula de operación |
| 26 | YT28-3.04 | Bombilla de agua |
| 27 | YT28-3.05 | Bombilla de aire |
| 28 | YT28-3.07 | Sello de aire |
| 29 | YT28-3.08a | Culata |
| 30 | YT28-3.13 | Goma expansión |
| 31 | YT28-3.14 | Válvula de cambio |
| 32 | YT28-3.21 | perilla control |
| 33 | YT28-3.27 | Manilla izquierda |
| 34 | YT24-3.01 | Seguro |
| 35 | YT24-3.06 | Sello de aire |
| 36 | YT24-3.09 | Tuerca lateral |
| 37 | YT24-3.10 | Seguro |
| 38 | YT28-3.11 | Codo de aire |
| 39 | YT24-3.12 | Gatillo |
| 40 | YT24-3.15 | Válvula presión |
| 41 | YT24-3.16 | Resorte |
| 42 | YT28-3.18 | Codo de agua |
| 43 | YT24-3.19 | Seguro |
| 44 | YT24-3.22 | Perno pasador |
| 45 | YT24-3.23 | Válvula de agua |
| 46 | YT24-3.24 | Seguro |
| 47 | YT24-3.25a | tapa |
| 48 | YT24-3.26 | Válvula de agua |
| 49 | YT24-3.28 | Manilla derecha |
| 50 | YT24-3.29 | Manilla de goma |
| 51 | YT24-3.30 | Sello de goma |
| 52 | YT25-3.06 | Resorte |
| 53 | YT25-3 09 | Sello de bombilla |
| 54 | YT25-313 | Sello |
| 55 | YT25-3.14 | Sello de bombilla |
| 56 | YT25-3 20 | Resorte chicharra |
| 57 | YT25-3.21 | Pasador chicharra |
| 58 | YT25-3 24 | Sello |
| 59 | YT25-3 35 | Golilla de cobre |
| 60 | 8×1.9 | Oring |
| 61 | 22×2.4 | Oring |
| 62 | 25×2.4 | Oring |
| 63 | 36×3.5 | Oring |
| 64 | ZBJ15001-87 | Abrazadera |
| 65 | 8×24 | Pasador |
| 66 | GB93-87 | Golilla |
| 67 | GB6172-86 | Tuerca |

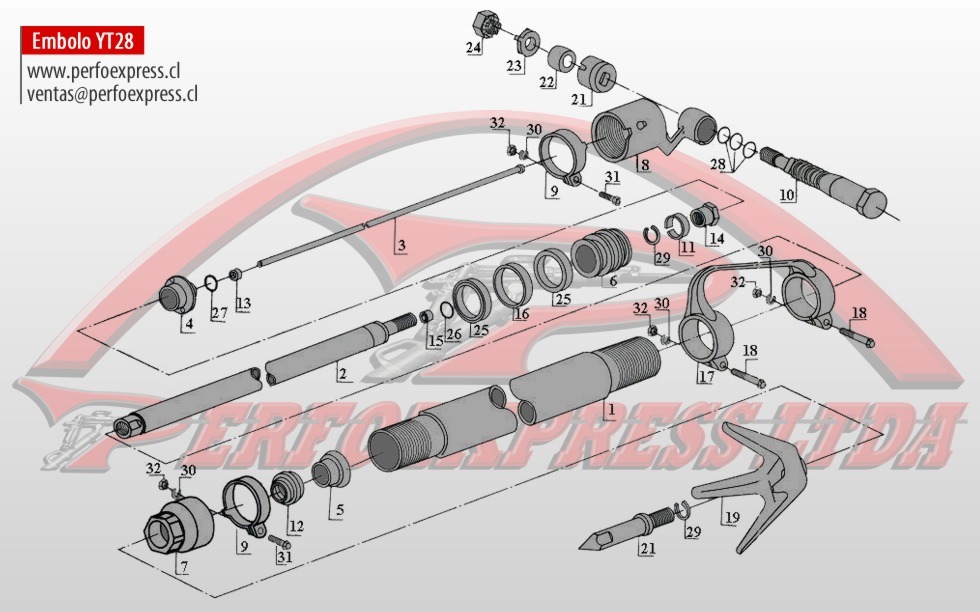

| N° | Codigo | Descripción |
|---|---|---|
| 1 | FT160BD-1a | outer tube |
| 2 | FT160BD-3a | extesion tube weldment |
| 3 | FT160BD-14a | air Pipe |
| 4 | FT160BG2 | frame pad |
| 5 | FT160BC-4 | Guide Sleeve |
| 6 | FT160BC-6 | piston |
| 7 | FT160BC-8 | tube |
| 8 | FT160BC-11b | frame |
| 9 | FT160BC-12 | locking ring |
| 10 | FT160BG13 | traverse |
| 11 | FT160-17 | spring ring |
| 12 | FT160B-18b | dustproof sleep |
| 13 | FT160BC-22 | airpipe rubber pad |
| 14 | FT160BC-23 | locking nut |
| 15 | FT160BC-21 | washer |
| 16 | FT160BC-21 | suport ring |
| 17 | FT160BC-24 | handle |
| 18 | M10x65 GB5782-86 | small six hex.box |
| 19 | FT140B-9 | sprag weldment |
| 20 | FT140B-10 | center |
| 21 | FT160BC-25 | loking pad |
| 22 | FT160BC-26 | spring pad |
| 23 | FT140-29 | pad |
| 24 | JB/ZQ426486 | loking nut |
| 25 | I-I GB1235-76 | YX-seal ring |
| 26 | 1-1 GB1235-76 | O-seal ring |
| 27 | 1-1 GB1235-76 | O-seal ring |
| 28 | 1-1 GB1235-76 | O-seal ring |
| 29 | GB9322 | spring pad |
| 30 | GB9310 | spring pad |
| 31 | M10x40GB5782-86 | small six hex.box |
| 32 | GB6172 M10-Zn.D | six hex.thin nut |
